Step 1: Setup your development environment | |
We will be using
| |
| |
Step 2: Authentication: ( https://www.ebsuite.com/cxf/SessionAuthenticatorAPI?wsdl ) | |
2A> Generating Java Classes from WSDL | |
C:> WSDL2Java https://www.ebsuite.com/cxf/SessionAuthenticatorAPI?wsdl This should generate several web service classes in your file system. | |
Using WSDL2Java to generate Stub Classes | |
Result Folder | |
2B> Using these classes to authenticate:
Code Sample 1: SimpleTest1 (com.ebsuite.common.tutorial)
| |
package com.ebsuite.common.tutorial; import java.io.*; import java.util.*; import com.ebsuite.login.SessionAuthenticatorAPIServiceSoapBindingStub; public class SimpleTest1 { public static void doTest() throws Exception { java.net.URL _endpoint = new java.net.URL( "https://www.ebsuite.com/cxf/SessionAuthenticatorAPI" ); SessionAuthenticatorAPIServiceSoapBindingStub _stub = new SessionAuthenticatorAPIServiceSoapBindingStub(_endpoint, new org.apache.axis.client.Service() ); System.out.println( "[" + _stub.simpleAuthenticate( "******", "*************************" ) + "]" ); } public static void main ( String[] params ) { try { doTest(); } catch (Exception e) { e.printStackTrace(); } } } | |
Compile, Run, and Result If success, the result should start with "[SESSIONID:" . Otherwise it should display the error message. | |
Alternatively, we can use loginAuthenticate(company_name,user_name,password) to authenticate.
package com.ebsuite.common.tutorial; import java.io.*; import java.util.*; import com.ebsuite.login.SessionAuthenticatorAPIServiceSoapBindingStub; public class SimpleTest1 { public static void doTest() throws Exception { java.net.URL _endpoint = new java.net.URL( "https://www.ebsuite.com/cxf/SessionAuthenticatorAPI" ); SessionAuthenticatorAPIServiceSoapBindingStub _stub = new SessionAuthenticatorAPIServiceSoapBindingStub(_endpoint, new org.apache.axis.client.Service() ); System.out.println( "[" + _stub.loginAuthenticate( "*****", "*****", "*****" ) + "]" ); } public static void main ( String[] params ) { try { doTest(); } catch (Exception e) { e.printStackTrace(); } } } | |
| |
Step 3: Post Authentication: Processing Opportunity Records. ( https://www.ebsuite.com/cxf/OppAPI?wsdl ) | |
3A> Generating Java Classes from WSDL | |

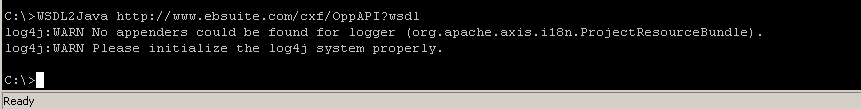

C:> WSDL2Java https://www.ebsuite.com/cxf/OppAPI?wsdl This should generate several web service classes in your file system. | |
Using WSDL2Java to generate Stub Classes | |
Result Folder | |
3B> Using these classes to process Opportunity Records:
Code Sample 2: OppTest2 (com.ebsuite.common.tutorial), search opportunities
| |
package com.ebsuite.common.tutorial; import java.io.*; import java.util.*; import com.ebsuite.login.SessionAuthenticatorAPIServiceSoapBindingStub; import com.ebsuite.sales.api.OppAPIServiceSoapBindingStub; import com.ebsuite.sales.api.OpportunityList; import com.ebsuite.sales.api.Opportunity; public class OppTest2 { public static void doTest() throws Exception { java.net.URL _endpoint = new java.net.URL( "https://www.ebsuite.com/cxf/SessionAuthenticatorAPI" ); SessionAuthenticatorAPIServiceSoapBindingStub _stub = new SessionAuthenticatorAPIServiceSoapBindingStub(_endpoint, new org.apache.axis.client.Service() ); String authResult = _stub.loginAuthenticate( "****", "****", "****" ); System.out.println( "[" + authResult + "]" ); if ( authResult.startsWith("SESSIONID:") ) { String sessId = authResult.substring( 10 ); OppAPIServiceSoapBindingStub oppApiStub = new OppAPIServiceSoapBindingStub( new java.net.URL( "https://www.ebsuite.com/cxf/OppAPI" ), new org.apache.axis.client.Service() ); OpportunityList oppList = oppApiStub.searchOpportunities( sessId, "William" ); Opportunity[] opps = oppList.getList(); for (int i=0; i < opps.length; i++) { System.out.println( " ( " + opps[i].getOppNumber() + " ) " + opps[i].getOppName() ); } } } public static void main ( String[] params ) { try { doTest(); } catch (Exception e) { e.printStackTrace(); } } } | |

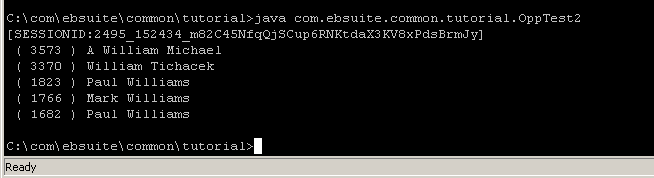

Compile, Run, and Result In this example, there are 5 records returned for search result "William" | |
3C> More Sample Code: Save one Opportunity Data:
Code Sample 3: OppTest3 (com.ebsuite.common.tutorial)
| |
package com.ebsuite.common.tutorial; import java.io.*; import java.util.*; import com.ebsuite.login.SessionAuthenticatorAPIServiceSoapBindingStub; import com.ebsuite.sales.api.OppAPIServiceSoapBindingStub; import com.ebsuite.sales.api.Opportunity; import com.ebsuite.sales.api.BaseCustomFieldData; public class OppTest3 { public static void doTest() throws Exception { java.net.URL _endpoint = new java.net.URL( "https://www.ebsuite.com/cxf/SessionAuthenticatorAPI" ); SessionAuthenticatorAPIServiceSoapBindingStub _stub = new SessionAuthenticatorAPIServiceSoapBindingStub(_endpoint, new org.apache.axis.client.Service() ); String authResult = _stub.loginAuthenticate( "***", "****", "***" ); System.out.println( "[" + authResult + "]" ); if ( authResult.startsWith("SESSIONID:") ) { String sessId = authResult.substring( 10 ); OppAPIServiceSoapBindingStub oppApiStub = new OppAPIServiceSoapBindingStub( new java.net.URL( "https://www.ebsuite.com/cxf/OppAPI" ), new org.apache.axis.client.Service() ); System.out.println( " Now attempting to create a new Opportunity." ); Opportunity o = new Opportunity(); o.setOppId( -1 ); // indicating new record o.setOppName( "Web Service API Test " ); // this should generate a unique name o.setCustomerId( 258621 ); // Please use a real, valid customer id. BaseCustomFieldData[] cfdatas = new BaseCustomFieldData[1]; cfdatas[0] = new BaseCustomFieldData(); cfdatas[0].setCfDataId( -1 ); // indicating new record cfdatas[0].setFieldDefinitionId(-1); cfdatas[0].setFieldDefinition( "Rental City" ); cfdatas[0].setCfDataValue( "San Francisco" ); cfdatas[0].setOlLastUpdateDate( Calendar.getInstance() ); // touch the date stamp, so the server know to process this record o.setCustomFields( cfdatas ); Opportunity result = oppApiStub.saveOpportunityRecord( sessId, o ); System.out.println( "\n\n --- saveOppRecord() --- " ); if ( result != null && result.getOppId() > 0 ) { System.out.println( " Record saved successfully. New record ID ="+ result.getOppId() ); System.out.println( " Calling retrieve detail again. " ); Opportunity refresh = oppApiStub.getOpportunityDetail( sessId, result.getOppId() ); System.out.println( refresh.getOppName() ); } else { System.out.println( " Transaction Failed. " ); if ( result != null ) System.out.println( " Msg = "+ result.getErrorMsg() ); } } } public static void main ( String[] params ) { try { doTest(); } catch (Exception e) { e.printStackTrace(); } } } | |

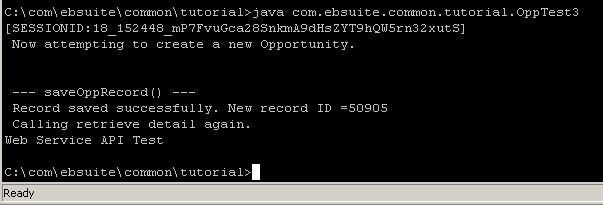

Compile, Run, and Result Check your Opportunity online. You should see the new data online. |
